PN# R109P09
Description

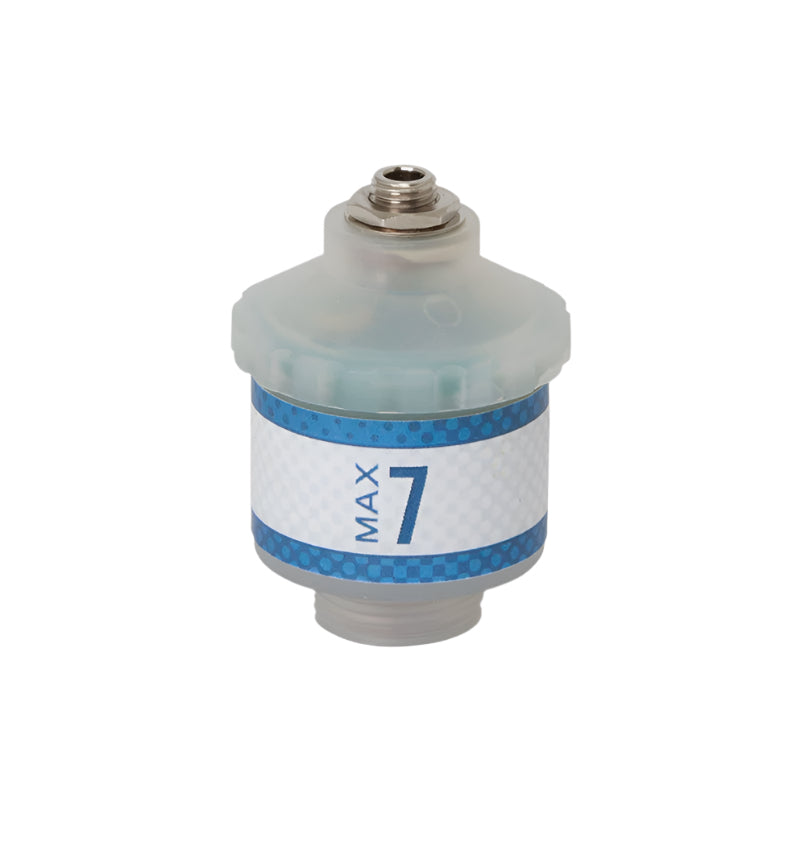

Maxtec Max-7 Oxygen Sensor
Cross Reference
- Analytical Industries: PSR-11-917-J (Output 7-13mV)
- Atom: OX-60
- Bird: 6400, 8400, VIP
- BMD (Bio-Med Devices): M-10, M-2
- Caradyne: 8-100412-00, Criterion 40, Criterion 60, WhisperFlow 2-40, WhisperFlow 2-60
- City Technologies: MOX-2
- Dameca: Alpha Med
- Datex Ohmeda: Engstrom Elvira, Engstrom Erica
- Draeger: MU16250
- Envitec: OOM102-1, OOM102-1-HEY, OxiQuant M
- ITG: M-15
- Lifecare: PLV102
- Maxtec: Max-7
- MEDIX: Natalcare
- Mercury Medical: 10-103-18
- Mindray; Datascope: 0600-00-0106, Anestar Plus
- MSA: MiniOX 3000, MiniOX I, MiniOX II, MiniOx III
- Nuova: E-15/5
- Philips Respironics: Espirit, V200
- Precision Medical: 505327, PM5900, PM5900L
- Puritan Bennet: 7820
- Sensoronics; Pacifitech: PT-11A
- Siare: Morpheus
- Spacelabs: 015-0285-00
- Stephan: 1-107-60-009, 110760009, Artec, Christina, F120 Reanimator, F120 Reanimator Mobile, F120GT Globetrotter
- Taema: YR010100, Alys, Clarys, YR010100, Caesar
- Teledyne: R-17MED #C-43690, AX 300, R17MED #C-43690, MX 300, TED AX 300
- Viamed: R-26Med
Specifications
- Range of Measurement: 0 to 100% O2
- Output Range: 8.0 to 12.0 mV
- Zero Offset: ≤ .2 mV
- Response Time: ≤ 12 s
- Linearity: ± 2.0%
- Expected Lifetime: < 6 years
- Temperature Compensation: NTC
- Operational Temperature Range: 0°C to 45°C
- Storage Temperature Range: -20°C to 50°C
- Humidity Range: 5% to 95% RH, non-condensing
- Interference: Per EN ISO 80601-2-55
- Electrical Interface: 3.5mm mono jack
