PN# R112P18
Description

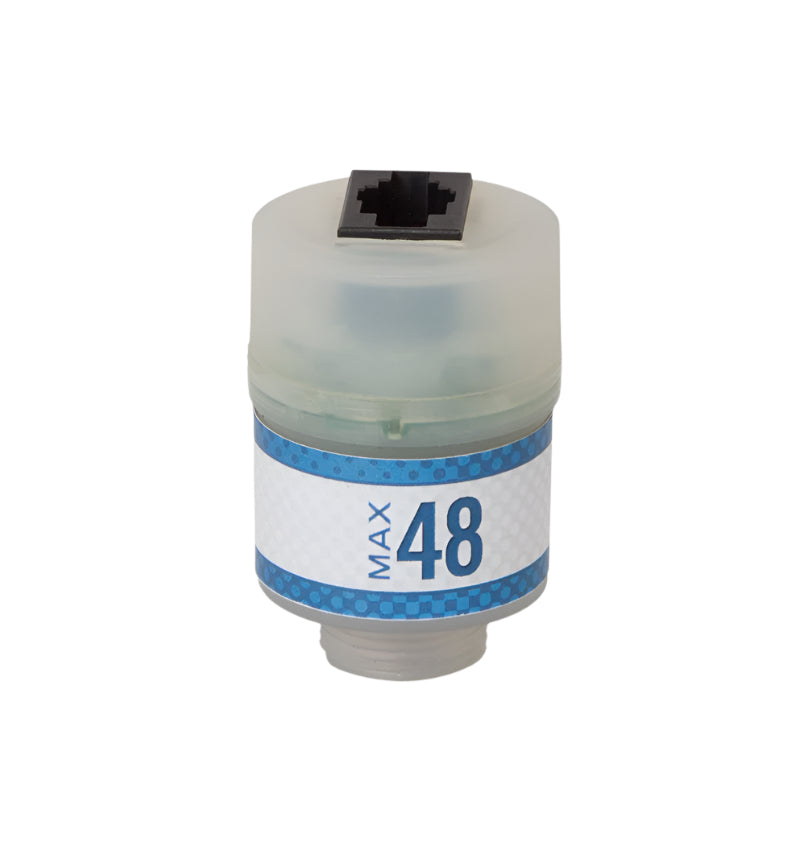

Maxtec Max-48 Oxygen Sensor
Cross Reference
- Analytical Industries: All-11-60, All2001 Analyzer, All2002 Analyzer, AII-2000A, AII-2000M
Specifications
- Range of Measurement: 0-100% vol.% O2
- Output Range: 3.8 to 4.8 mV
- Zero Offset: < 50 µA
- Response Time: ≤ 12 s
- Linearity: ≤ 2.0%
- Expected Lifetime: 500,000 vol. %O2 hours
- Temperature Compensation: NTC
- Operational Temperature Range: 0˚ to 45˚C
- Storage Temperature Range: -0˚ to 50˚C
- Humidity Range: up to 100% RH
- Ambient Pressure Range: 750-1250 hPa
- Interference: according DIN EN 12598 and DIN EN ISO 21647
- Electrical Interface: AMP phone jack 4P4C
