PN# R125P04-001
Description

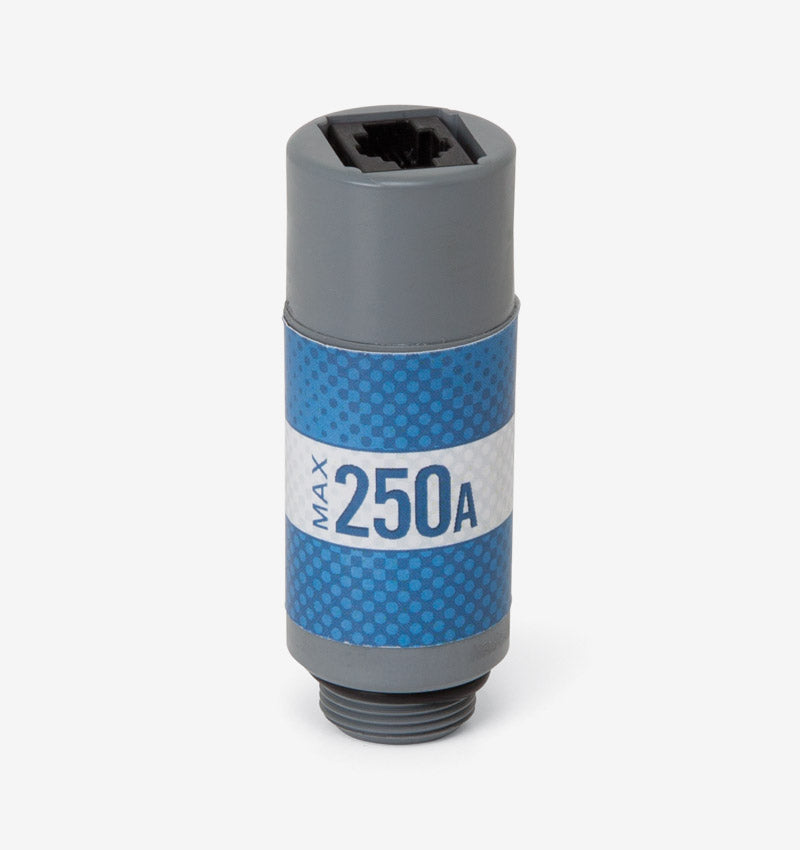

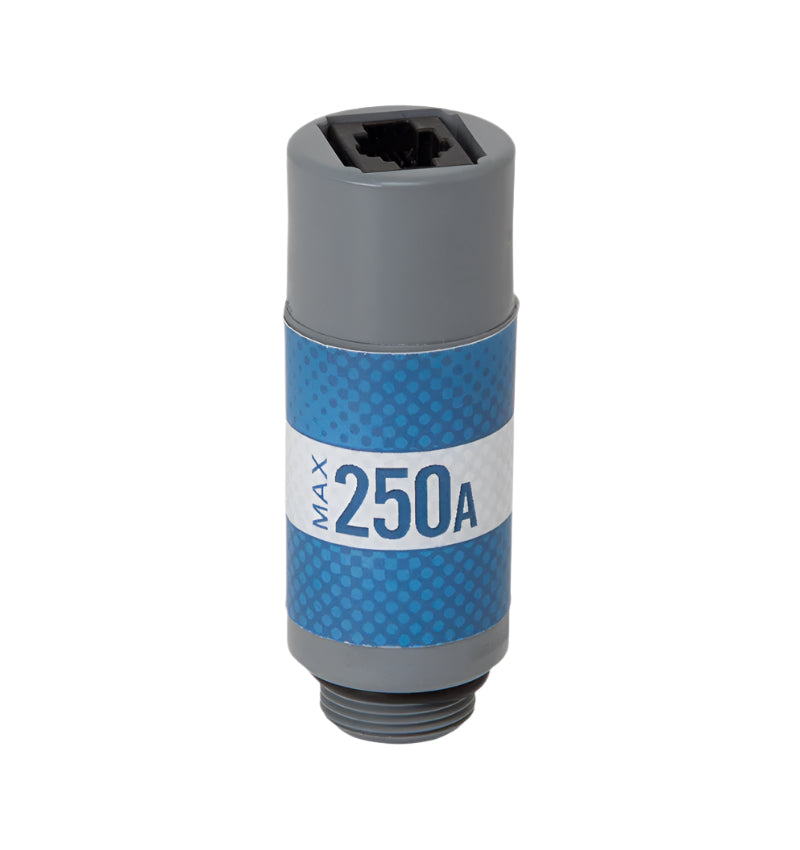

Maxtec Max-250A oxygen sensor
Cross Reference
- Analytical Industries: PSR-11-75-KE250A
- Maxtec: Max-250a, R125P04-001
Specifications
- Range of Measurement: 0 to 100% O2
- Output Range: 11mV ± 2.5 mV
- Zero Offset: ≤ 0.50 mV
- Response Time: ≤ 15 s
- Linearity: Within ± 1.0%
- Expected Lifetime: > 1,500,000 %O2 hours
- Temperature Compensation: < ± 3.0%
- Operational Temperature Range: 5° to 40°C
- Storage Temperature Range: -15° to 50°C
- Humidity Range: 5% to 95% RH, non-condensing
- Interference: Per EN ISO 80601-2-55
