PN# R116P06
Description

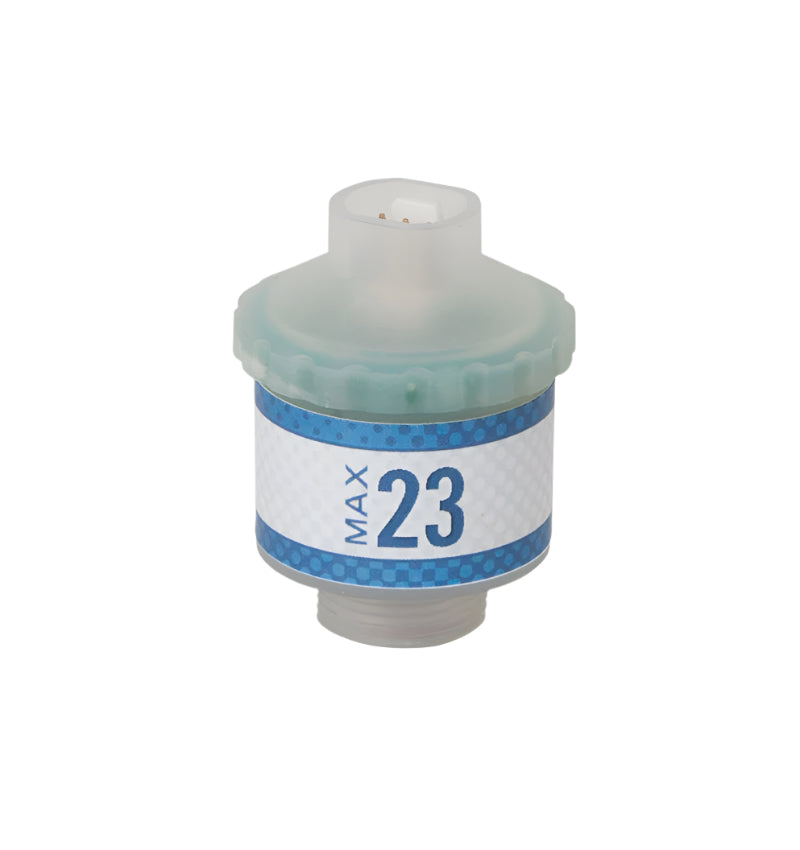

Maxtec Max-23 Oxygen Sensor
Cross Reference
- Analytical Industries: PSR-11-917-MH1
- Atom: C81828-R22M, V-2100G, V-2200
- Biotest: A 103
- City Technology: MOX-1
- Criticare: 644, 8100 Poet, 8500 Poet
- Datex Ohmeda: 0600-00-0002, Centiva S/5
- Draeger; Air Shields: 8362030, Isolette 8000, Isolette C200, Isolette C2000
- EnviteC: OOM-102
- GE Healthcare; Marquette: R-22
- Hamilton Medical: Arabella, Galileo, Multinex Analys, Raphael, G5
- Hill-Rom: C2000
- Maxtec: Max-12A, R109P48, Max-23, R116P06
- Mercury Medical: 10-103-15
- Narco Med: R-22
- Nuova: E-17/A2
- SensorTech: ST-12
- Sensoronics; Pacifitech: SS-12AIR, PT-12AIR
- Spacelabs: 90514
- Taema: Cesar
- Teledyne: R22 #C-44611, R-22MED
- Teleflex (Hudson): 5566
- Viamed: R-22Med
Specifications
- Range of Measurement: 0 to 100% O2
- Output Range: 8.0 to 13.0 mV
- Zero Offset: ≤ 0.2 mV
- Response Time: 1.5 - 3.5 s
- Linearity: ≤ 3%
- Expected Lifetime: 500,000 %O2 hours
- Operational Temperature Range: 25° to 45°C
- Storage Temperature Range: -20° to 50°C
- Humidity Range: < 100% RH (non-condensing)
- Ambient Pressure Range: 750-1250 mbar
- Interference: Conforms to DIN EN ISO 80601-2-55
- Electrical Interface: 2-pin Molex
