PN# R116P60
Description

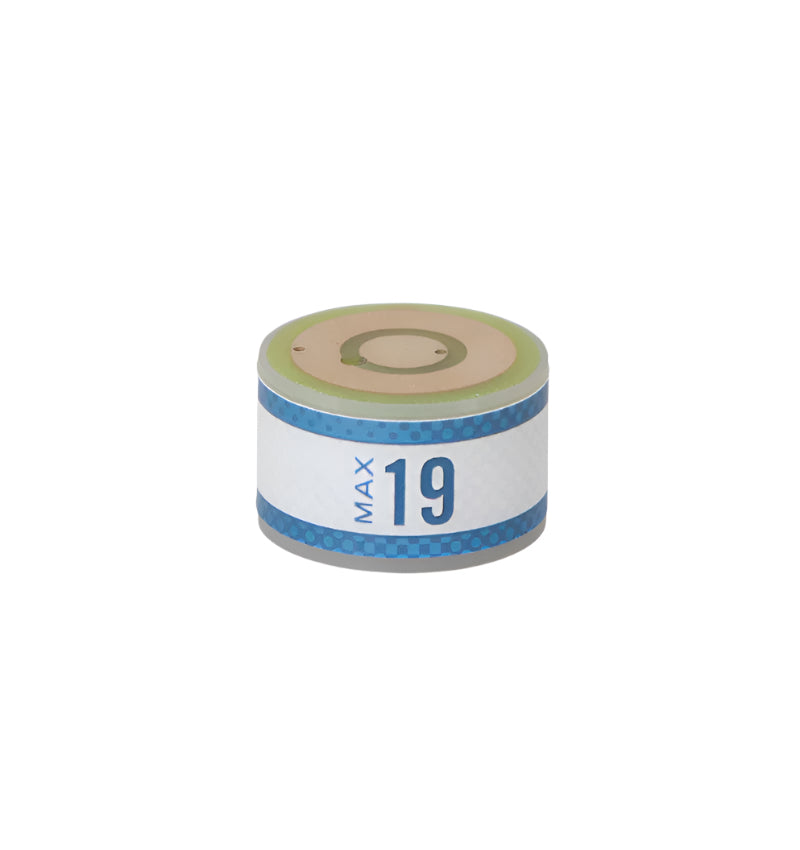

Maxtec Max-19 Oxygen Sensor
Cross Reference
- Analytical Industries: PSR-11-33-1
- Bio-Med Devices: 48351
- Bertucci: T1, T2
- Bio Tek: X74223
- Ceramatec: CAG-19
- Deversified Diagnostics: Xenematic
- Emerson: EMV-OA
- Envitec: OOM107
- Hamilton: HM-01, Veolar, Amadeus, Arabella, Aladdin, Heyer Pocket O2
- Henleys: 5569
- Hudson RCI: 5568, C1, V-01, 5525, 5528, 5529, 5550, 5552
- Imed: 810, 825, T-1, T-2
- Integral Process: 65007
- Ivac: 1200, 1225
- Libra: OM500
- MSA: 478841, 485955
- Maxtec: Max-19 (R116P60)
- Megamed: M2
- Mercury Medical: 10-103-00
- Nuova: E-33/0
- Oxitron: 3250
- Sensidyne: SV-01
- Sensoronics; Pacifitech: PT-01
- SensorTech: ST-01
- Taema: KV050501, Oxy 2100
- Teledyne: T1 #A-37016, T2, TED 160, TED 190
- Toptronics: XT74223
- Teleflex (Hudson): 5565, 5568, C1, C-01
- Vickers: 251
Specifications
- Range of Measurement: 0 to 100%
- Output Range: 170 to 230 µA
- Zero Offset: < 5 µA
- Response Time: < 20 s
- Linearity: ≤ 3%
- Expected Lifetime: > 250,000 %O2 hours
- Operational Temperature Range: 10° to 40°C
- Storage Temperature Range: -20° to 50°C
- Humidity Range: 0% to 99% RH, non-condensing
- Ambient Pressure Range: 700-1250 mbar
- Interference: PER EN ISO 80601-2-55
- Electrical Interface: gold-plated slip rings
