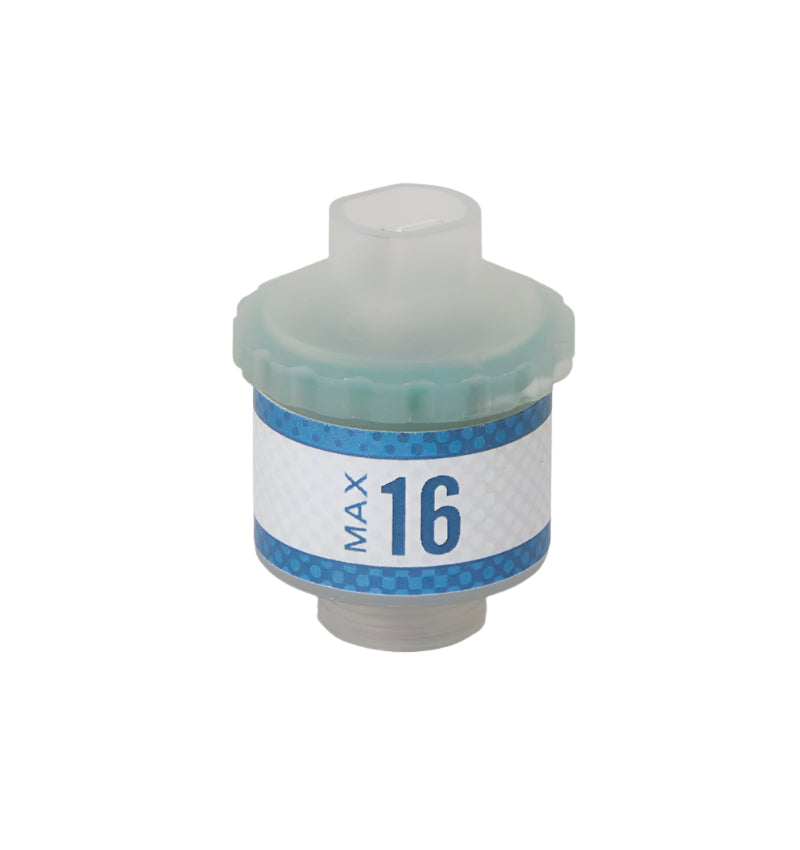

PN# R114P70
Description
Our Max-16 is compatible with the following Ventilators: Covidien [4-072214-00, 980, 840, 740, 760] and has an Output Range 9.0 to 16.0 mV, with a Response Time of ≤ 12 seconds, with an Expected Lifetime of > 1,000,000 %O2 hours.
Cross Reference
- Analytical Industries: PSR-11-917-M
- CareFusion: 68289, Avea, SIPAP
- Covidien; Puritan Bennett: 4-072214-00, 980, 840, 740, 760, PB2000 Tester, 740, 760, 840
- Maquet: 6419332, Servo 900
- Maxtec: Max-16 (R114P70)
- Mercury Medical: 10-103-14
- Nuova: E-16/0
- PB: 760, 840
- Siemens: Servo 300
- Versamed: M1161179, iVent 201
Specifications
- Range of Measurement: 0 to 100%
- Output Range: 9.0 to 16.0 mV
- Zero Offset: ≤ 0.250 mV
- Response Time: ≤ 12 seconds
- Linearity: ≤ 3%
- Expected Lifetime: > 1,000,000 %O2 hours
- Temperature Compensation: NTC
- Operational Temperature Range: 10° to 40°C
- Storage Temperature Range: -20° to 50°C
- Humidity Range: 0% to 99% RH, non-condensing
- Ambient Pressure Range: 700-1250 mbar
- Interference: PER EN ISO 80601-2-55
- Electrical Interface: 3-pin Molex
