PN# R125P07
Description

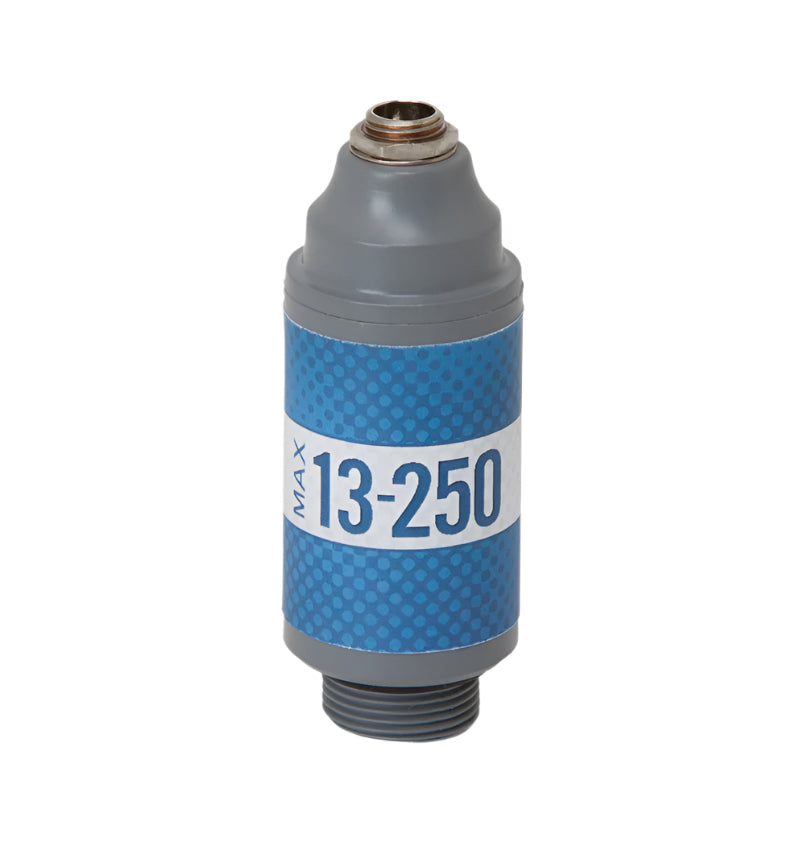

Maxtec Max-13-250 Oxygen Sensor
Cross Reference
- Analytical Industries: PSR-11-917-J
- Covidien: 4-020933-00, 7820 Monitor, 7200 Vent
- Datascope: Anestar S
- HillRom: 6735142
- Invivo: 9445 Sensor
- MSA: 406931, MiniOX 3000, MiniOX II, MiniOX III
- MSA (Ohio Medical): MiniOX I
- Mercury Medical: 10-103-05
- Pacifitech: PT-11A
- Philips (Respironics): Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor
- Teledyne: R17 #C-43690
- Teleflex (Hudson): 5567
- Viasys: 66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent
- VTI: 100580
Specifications
- Range of Measurement: 0 to 100% oO2
- Output Range: 12.0 to 17.0 mV
- Zero Offset: ≤ 0.50 mV
- Response Time: ≤ 15 s
- Linearity: ± 1.0%
- Expected Lifetime: >1,500,000 %O2 hours
- Temperature Compensation: < ± 3.0%
- Operational Temperature Range: 5˚ to 40˚C
- Storage Temperature Range: -15˚C to 50˚C
- Humidity Range: 5% to 95% RH, non-condensing
- Interference: per EN ISO 80601-2-55
- Electrical Interface: 3.5mm mono jack
