PN# R109P48
Description

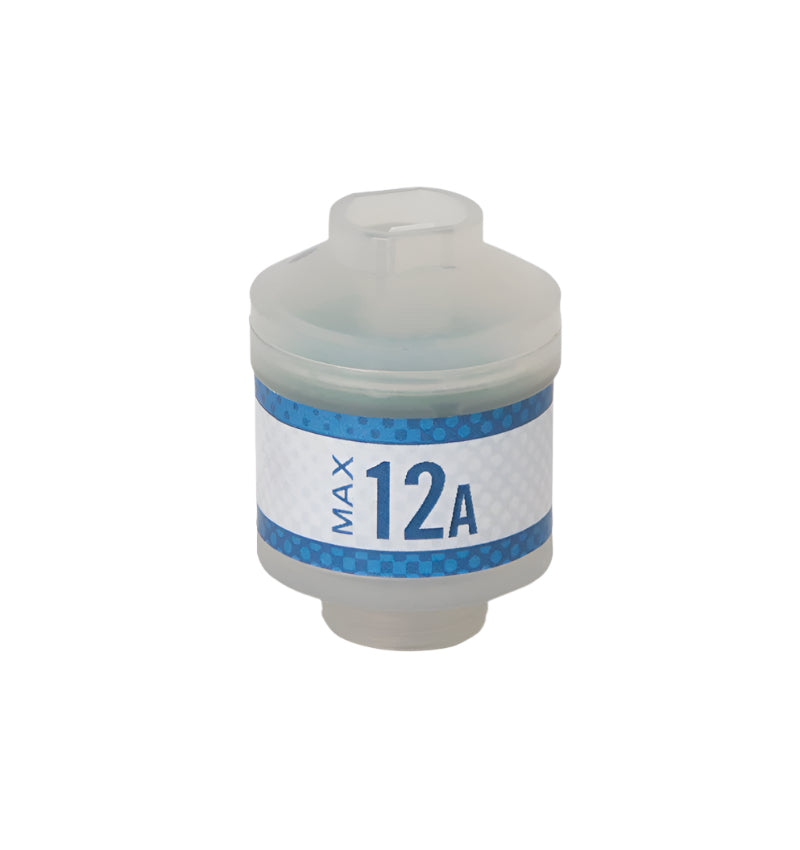

Maxtec Max-12A Oxygen Sensor
Cross Reference
- Analytical Industries: PSR-11-917-MH1
- Atom: C81828-R22M, V-2100G, V-2200
- Biotest: A 103
- CareFusion: Avea, Sipap
- City Technologies: MOX-1
- Criticare: 644, 8100 Poet, 8500 Poet
- Draeger; Air Shields: 8362030, Isolette 8000, Isolette C200, Isolette C2000
- Envitec: OOM102
- GE (Datex-Ohmeda): 0600-00-0002, Centiva S/5
- GE Healthcare; Marquette: R-22, Ivent
- Hamilton Medical: HM-12, Arabella, Galileo, Multinex Analys, Raphael
- Henleys: 5556
- HillRom: Isolette Incubator, R-22, C2000
- Hudson RCI: V-12, 5566
- ITG: M-12
- Infrasonics: R-22
- Maxtec: Max-12A (R109P48), Max-23 (R116P06)
- Mercury Medical: 10-103-15
- Narco Med: R-22
- Nuova: E-17/A2
- Philips (Respironics): NeoPAP
- SensorTech: ST-12
- Sensoronices; Pacifitech: SS-12AIR, PT-12AIR
- Spacelabs: 90514
- Taema: Cesar
- Teledyne: R-22MED
- Versamed: eVent
- Viamed: R-22Med
Specifications
- Range of Measurement: 0 to 100%
- Output Range: 8.0 to 13.0 mV
- Zero Offset: ≤ 0.200 mV
- Response Time: ≤ 15 s
- Linearity: ≤ 3%
- Expected Lifetime: > 500,000 %O2 hours
- Temperature Compensation: NTC
- Operational Temperature Range: 10° to 40°C
- Storage Temperature Range: -20° to 50°C
- Humidity Range: 0% to 99% RH, non-condensing
- Ambient Pressure Range: 700-1250 mbar
- Interference: PER EN ISO 80601-2-55
- Electrical Interface: 3-pin Molex
