PN# R140P07-001
Description

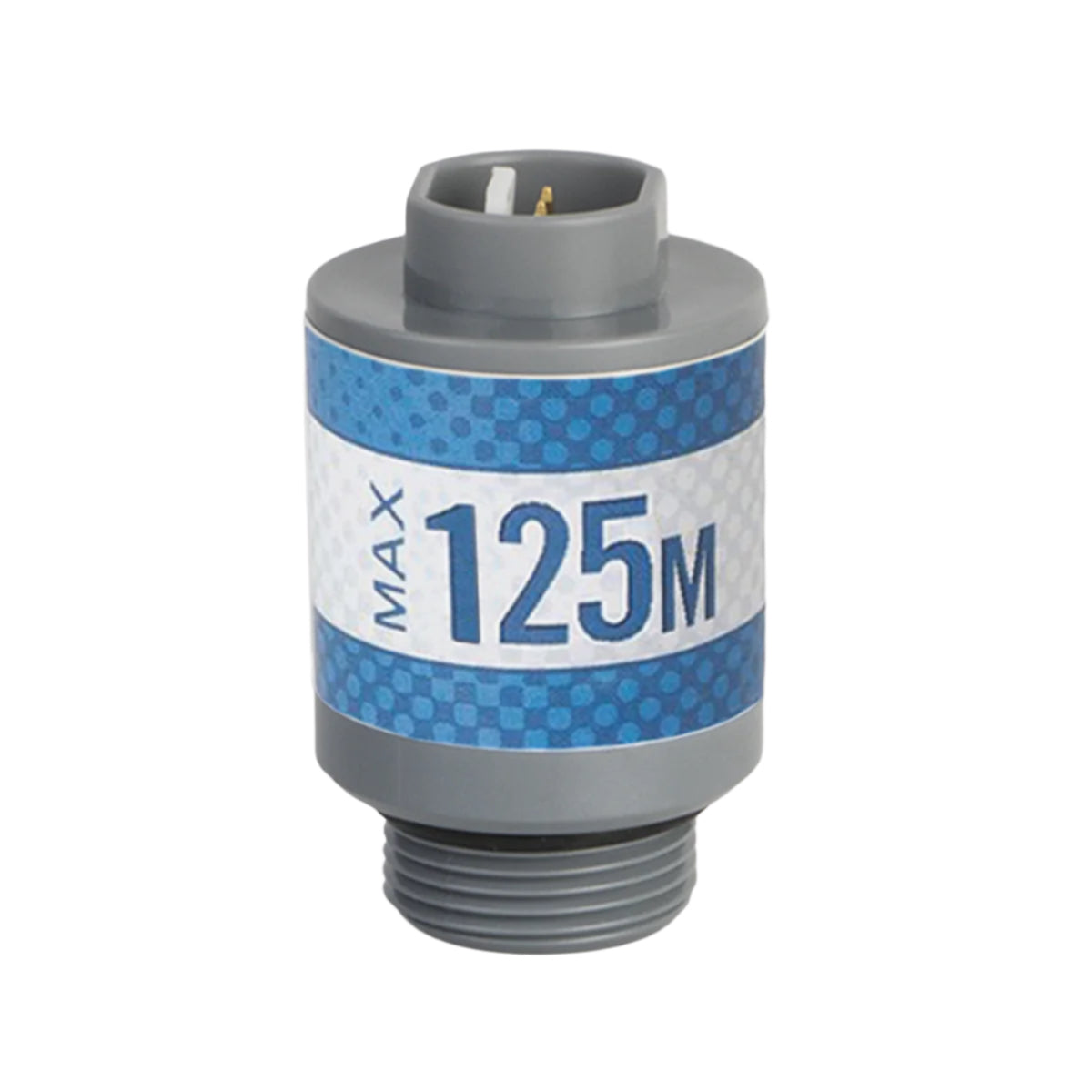

A shorter version of the Maxtec Max-250 sensor. The shorter length makes it better situations with height restrictions. Can be a replacement for the Max-16.
Cross Reference
- Maxtec: R114P70 (Max-16)
- Covidien: 4-072214-00, 980, 840, 740, 760, PB2000 Tester
Specifications
- Range of Measurement: 0 to 100%
- Output Range: 10.5 to 15 mV
- Zero Offset: ≤ 0.50 mV
- Response Time: ≤ 15 s
- Linearity: ± 1%
- Expected Lifetime: > 500,000% O2 hours
- Temperature Compensation: < ± 3.0% from 15º to 40ºC
- Operational Temperature Range: 5˚ to 40˚C
- Storage Temperature Range: -15˚ to 50˚C
- Humidity Range: 5% to 95% RH, non-condensing
- Electrical Interface: Molex 22-29-2031 or Equivalent
