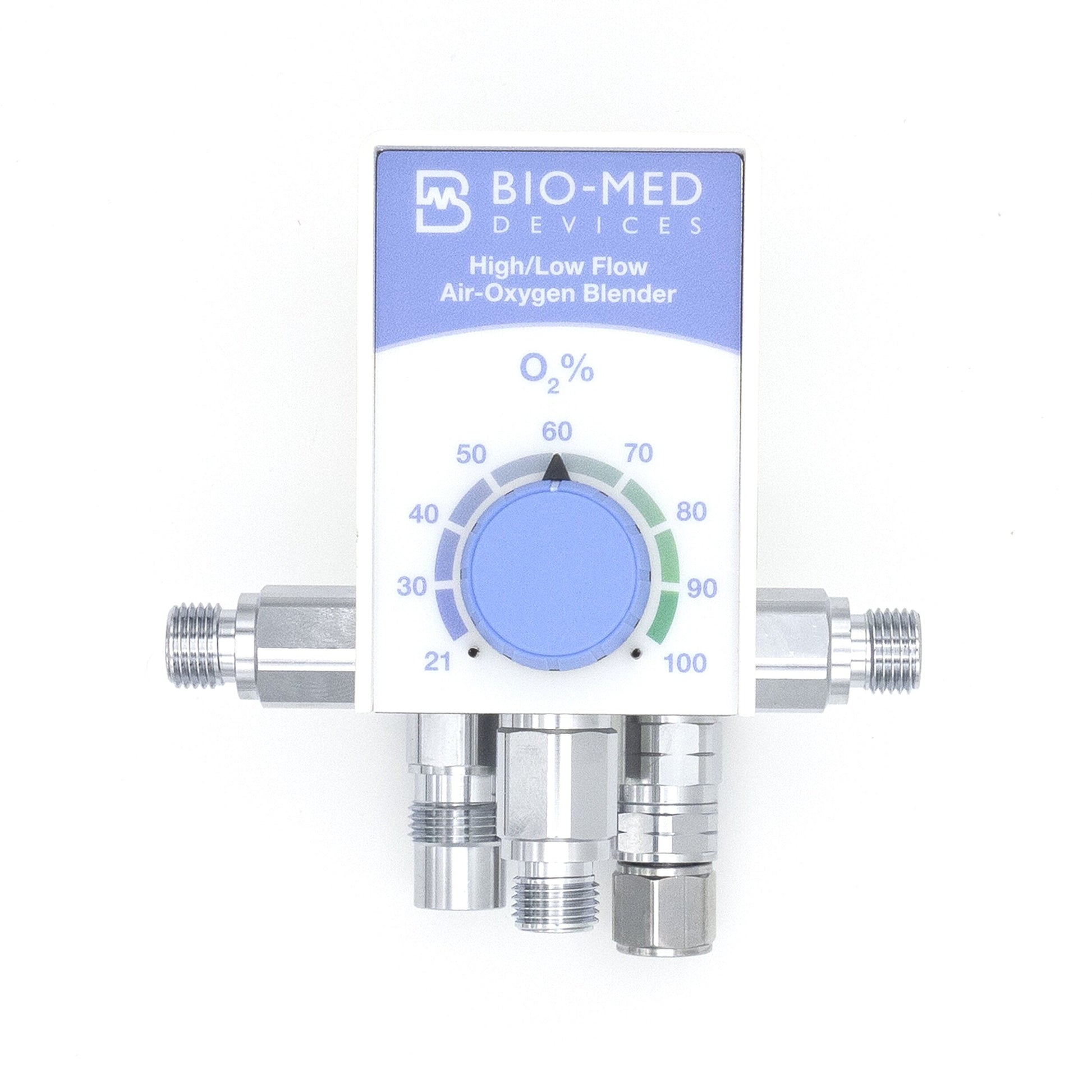

2004 High-Low Flow Oxygen Blender

PN# 2004 Bio-Med Devices

About

• High-Low Flow Blender (Emphasis on High)
• 3 DISS ports
• Right side enables 12 Lpm bleed flow. Accuracy range is from 2-108 Lpm
• With nothing connected to the Right side there is no bleed flow and the accuracy range is from 15-120 Lpm
• Part Number: 2004
  Flow Range: 2 to 120 LPM
• Input Port Fittings: DISS (for NIST add Part # 2007 to your order
• Output Port Fittings: DISS
• Output Port Flow Range:
• Left – 15-120 LPM (no bleed)/ 2-108 LPM (with bleed)
• Bottom – 15-120 LPM (no bleed)/ 2-108 LPM (with bleed)
• Right – 2-108 LPM (with bleed) Bleed for Flows <15 LPM: 12 LPM Size: 8W x 5.4H x 4.6D inches
• 2W x 13.7H x 11.7D cm Weight: 3.3 lbs./1.5 kg
