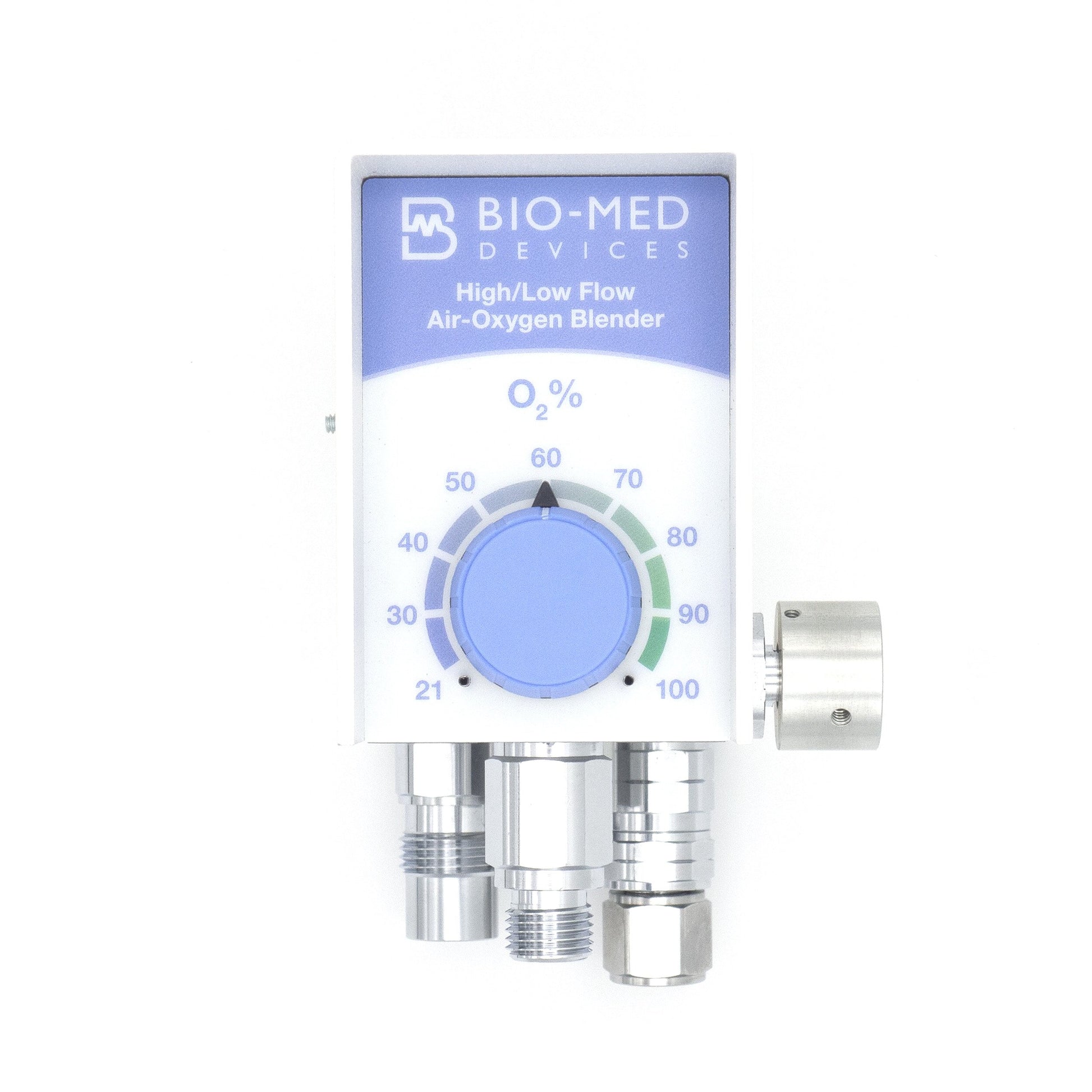

2001K High-Low Flow Oxygen Blender

PN# 2001K High-Low Flow Bio-Med Devices

About

• Provides higher flow capabilities of up to 120 LPM
• Bleed flow switched mounted to side
• 50 PSI DISS port for making a connection to the blender
• Adding a flow meter of 15 LPM is the most common application

• Part Number: 2001K
  Flow Range: 2 to 120 LPM
• Input Port Fittings: DISS (for NIST add Part # 2007 to your order
• Output Port Fittings: DISS
• Output Port Flow Range:
• Left – Plugged
• Bottom – 15-120 LPM (no bleed)/ 2-108 LPM (with bleed)
• Right – 2-108 LPM (with bleed) Bleed for Flows <15 LPM: 12 LPM
• Size:

  3.6W x 5.4H x 4.6D inches

  9.2W x 13.7H x 11.7D cm

  Weight: 3.2 lbs./1.45 kg
