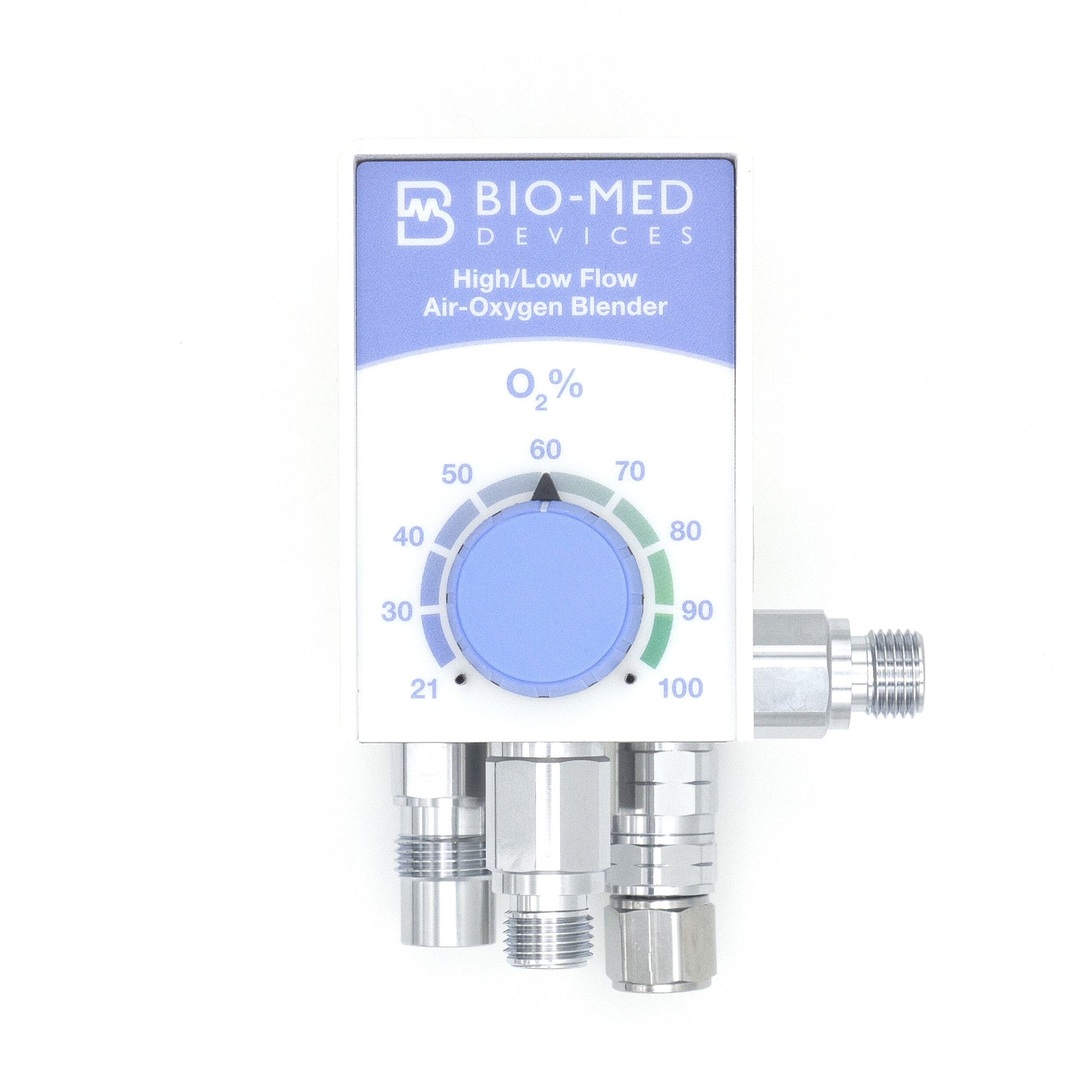

2001 High-Low Flow Oxygen Blender

PN# 2001 High-Low Flow Bio-Med Devices

About

• Provides higher flow capabilities of up to 120 LPM
• Available With MRI Compatibility (2001M)
• 50 PSI DISS port for making a connection to the blender
• Adding a flow meter of 15 LPM is the most common application
• Right side enables 12 LPM bleed flow. Accuracy range is from 2-108 LPM

• Part Number: 2001
  Flow Range: 2 to 120 LPM
• Input Port Fittings: DISS (for NIST add Part # 2007 to your order
• Output Port Fittings: DISS
• Output Port Flow Range:
• Left – Plugged
• Bottom – 15-120 LPM (no bleed)/ 2-108 LPM (with bleed)
• Right – 2-108 LPM (with bleed) Bleed for Flows <15 LPM: 12 LPM Size: 8W x 5.4H x 4.6D inches
• 2W x 13.7H x 11.7D cm Weight: 3.2 lbs./1.45 kg
